Webasto : Air Top Evo 40 p/n: 9029236D RV KIT 12v inc Multi control, mounting plate, ducting & outlet

Air Top Evo 40/55

Constant, reliable heat - even at high altitudes

Air Top Evo 40 and Air Top Evo 55 are the big "sisters" of the Air Top 2000 STC air heater from Webasto.

These heaters are available in 4 and 5.5 kW models. They are particularly suitable for the cabins and cargo compartments of large camping vehicles, trucks and buses or when heating is required in cold climates.

The warm air can be ducted around the vehicle to the desired locations.

A variety of different controls are available to give instant and timed heat operations.

This heater is suitable for multiple applications including RVs, camper vans, motorhomes, delivery vans, dog vans, trucks and buses. It can be installed in most vehicles with a fuel supply or a specific heating requirement.

Webasto's Intelligent Blower Control is fuel efficient and quiet in operation. These heaters automatically adjust to altitude up to 2,200m. The heaters are ideal for transporting temperature-sensitive goods and hazardous materials.

For all our heaters we offer a professional survey, design and fitting service which comes with a 3 year guarantee for parts and labour. Please call to discuss your specific requirements.

Key benefits at a glance:

• 4 kW - 5.5 kW heating capacity
• Diesel and petrol models
• Sturdy heater with compact dimensions and low fuel consumption
• Fast heat-up
• "Stepless" heating power control for quiet operation
• Service and replacement parts readily available
• Suitable for continuous heating
• Suitable for use in vehicles for transporting hazardous materials (ADR)
• 12 volt and 24 volt variants

Benefits of Air Top Evo 40/55

Product details

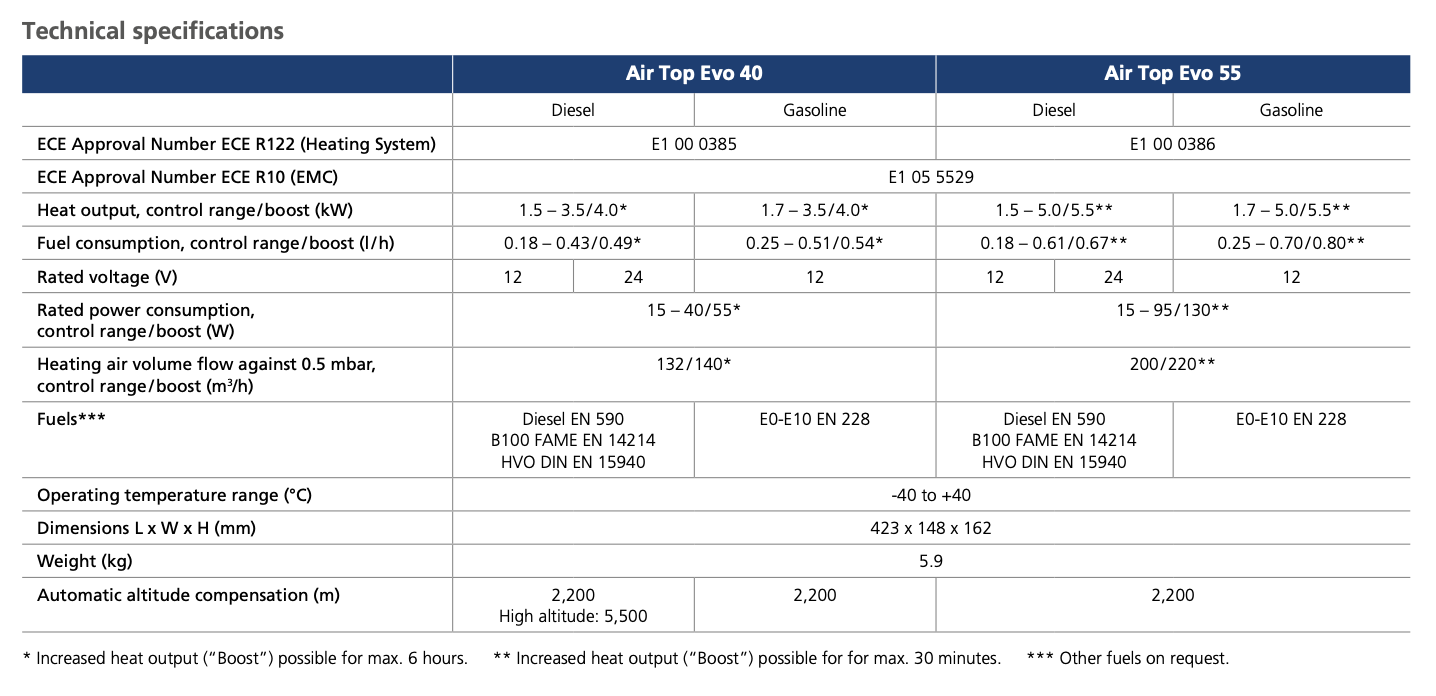

Product specifications

• Dimensions (L x W x H) in mm: 423 x 148 x 162

• Weight: 5.9 kg

• Rated voltage: 12 V, 24 V (both for diesel)

• Fuel: Diesel, gasoline, paraffinic fuels

Model overview Air Top Evo 40

• Air Top Evo 40 Diesel 12 V Basic

• Air Top Evo 40 Diesel 24 V Basic

• Air Top Evo 40 Gasoline12 V Basic

• Air Top Evo 40 Diesel 24 V High Altitude

• Air Top Evo 40 D 12 V RV Standard

• Air Top Evo 40 D 12 V RV Comfort

• Air Top Evo 40 D 12 V HA RV Comfort

• Air Top Evo 40 Marine 12 V Diesel

• Air Top Evo 40 Marine 24 V Diesel

Model overview Air Top Evo 55

• Air Top Evo 55 Diesel 12 V Basic

• Air Top Evo 55 Diesel 24 V Basic

• Air Top Evo 55 Gasoline 12 V Basic

• Air Top Evo 55 D 12 V RV Standard

• Air Top Evo 55 D 12 V RV Comfort

• Air Top Evo 55 Marine 12 V Diesel

• Air Top Evo 55 Marine 24 V Diesel
