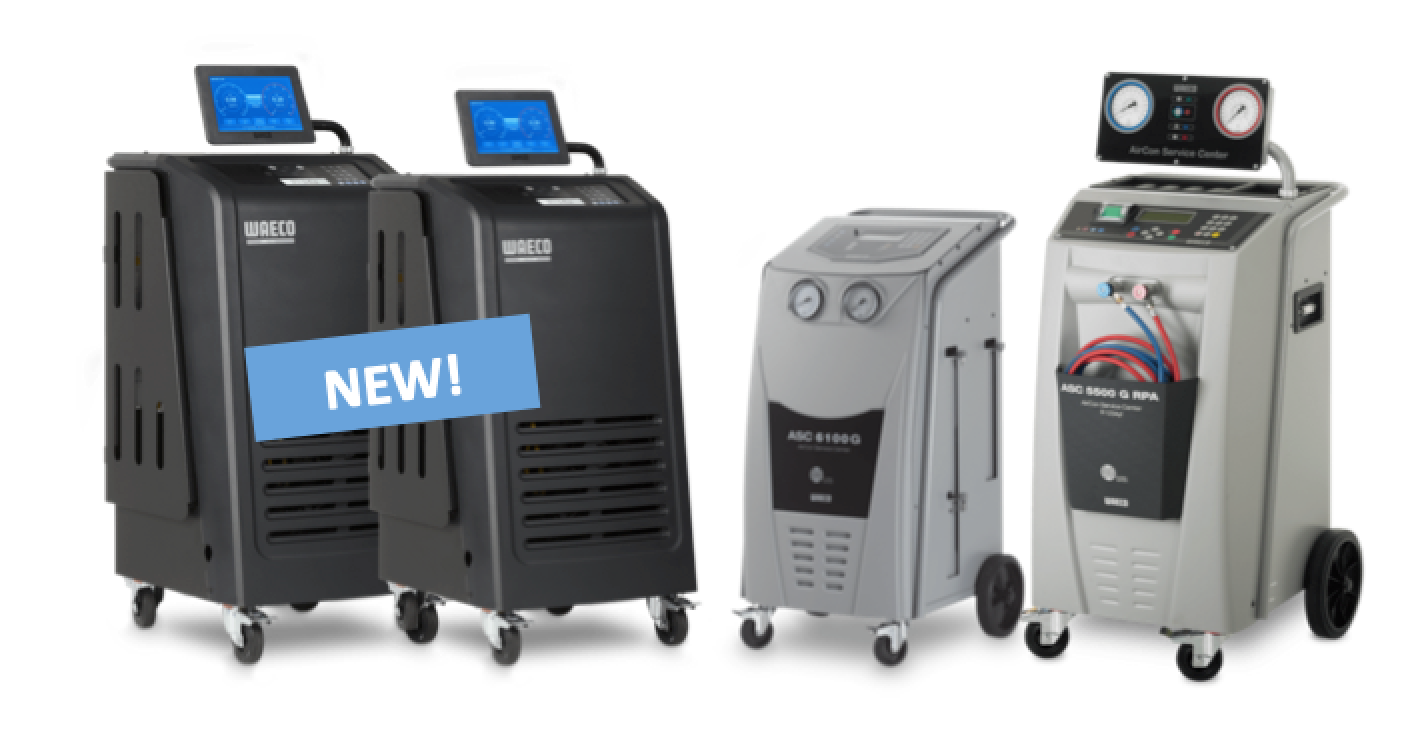

THE NEW ASC 7-SERIES

WELCOME TO THE NEW ASC 7-SERIES

MANY SMART FEATURES THAT WILL SAVE YOU TIME AND MONEY

Real-time LCD display and status bars

The new models are building on the long-term excellence of Waeco's Air-Conditioning Service Machines. The all-in-view display provides real-time digital pressure gauges, with an integrated status bar showing the progress of the each process such as recovery, vacuum and charging.

Conform to manufacturer standards

Most vehicle manufacturers now require you to use the correct specification of compressor oil and dye for their products. With our guidance we can ensure that the machines are supplied with the correct oil and dye for your particular use.

4 independent scales

An enhanced feature of the latest generation of service machine is the expansion to 4 highly accurate independent scales for compressor oils and/or UV additives for hybrid and non-hybrid vehicles.

Waeco Professional (Profi) Oil system

By using the correct compressor oil and Waeco's patented professional oil system you will avoid humidity and water contamination. This means you can service any vehicle likely to come into your workshop to a higher and safer standard. We will supply you with the correct oil for your specific vehicles.

WiFi integration

All 7 series have WiFi connectivity built in, so you can programme the machine via a mobile phone or computer and benefit from real-time data.

Avoid cross-contamination

The quality and precision of the ASC 7-series means that you can ensure there is no cross-contamination between tasks and vehicles, meaning you will get things right first time and avoid all of the problems associated with contamination, such as compressor failure and poor performance.

Refrigerant certification

The 7 series service units are certified for four refrigerants: the more commonly used R1234yf, R134a and R456A, R513A that may come onto the UK market, as drop-in replacements.

Upgrade your workshop and treat your mechanics to a highly efficient, practical and cool looking device!

Contact us to guide you through the kit optimisation process.

Everything we sell, we use and understand in-depth. We can help you to identify what is right for you, with the benefit of many years of practical experience.

ASC 7.3 : FULLY AUTOMATIC A/C SERVICE UNIT  : Ref. No. 9103303116

Specifications:
• Charging cylinder storage capacity: 16 kg
• Vacuum pump capacity: 5 cars/hour
• Wi-Fi integration
• Patented feeding system for fresh oil and UV additive
• Four Oil UV scales accuracy +/-1g
• Used oil drain accuracy +/- 1g
• Automatic vacuum check
• Automatic charging of leak detection additive
• Integrated charging amount database
• Swivel-mount 10” LCD display
• Heated charging cylinder for high-speed charging
• Special, 8-bearing weighing platform

• Special air conditioner flush function

• Hybrid flushing programme
• Large recessed tray for tools
• 500 ml used oil container for longer change intervals
• Three USB ports
• Certified for four refrigerants
• Filter performance for 150 kg refrigerant

As a standard start up package we supply the ASC 7.3 with 3m hoses, a thermal printer and hybrid upgrade kit you just need to specify the refrigerant you wish to use either R134a or R1234yf.

Note : This service machine can be used in conjunction with the Waeco CO2 / R744 upgrade kit

R744 Upgrade Kit for ASC Service Units : Ref. No. 8885100178

Please call 01732 868080 for pricing

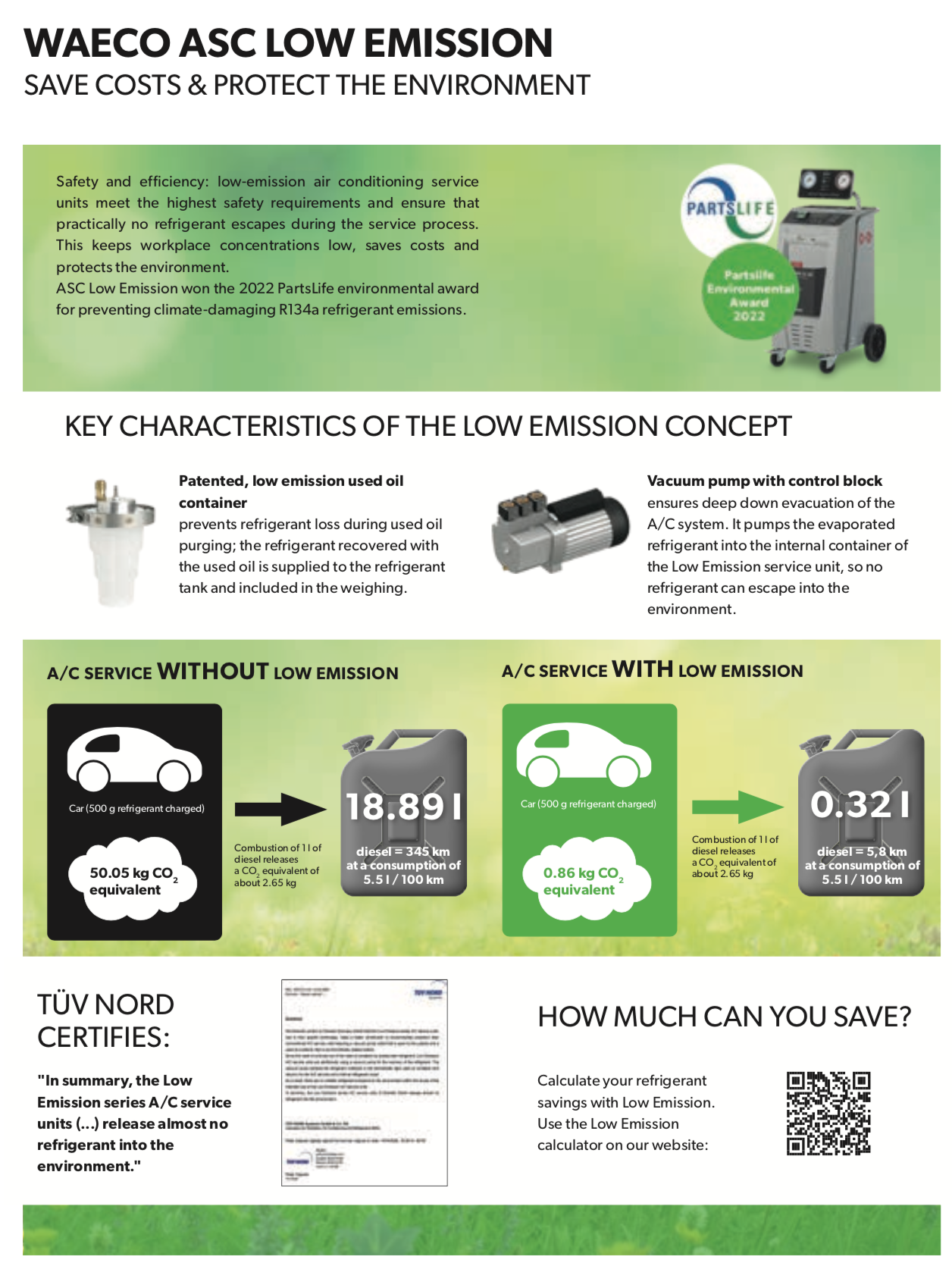

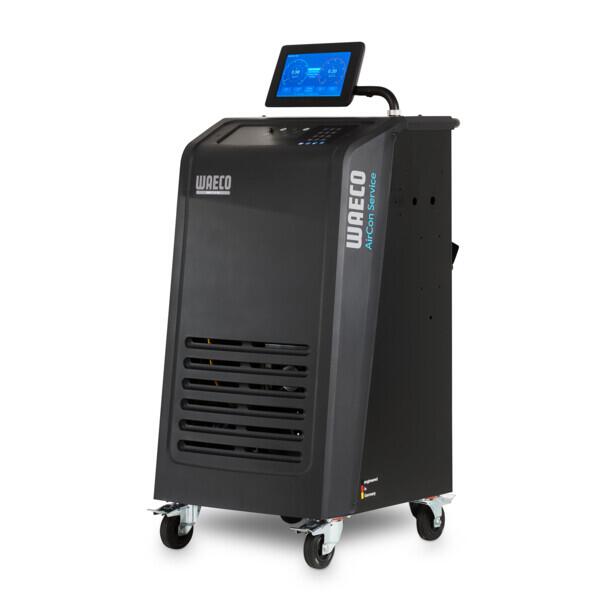

ASC 7.3 LE (Low Emission)
FULLY AUTOMATIC LOW EMISSION A/C SERVICE UNIT  : Ref. No. 9103303117

Specifications:

• Recycling rate 99,99%
• Charging cylinder storage capacity: 16 kg
• Vacuum pump capacity: 5 cars/hour
• Wi-Fi integration
• Patented feeding system for fresh oil and UV additive
• Four Oil UV scales accuracy +/-1g
• Used oil drain accuracy +/- 1g
• Automatic vacuum check
• Automatic charging of leak detection additive
• Integrated charging amount database
• Swivel-mount 10” LCD Display
• Heated charging cylinder for high-speed charging
• Special, 8-bearing weighing platform
• Special air conditioner flush function
• Specal hybrid flushing programme

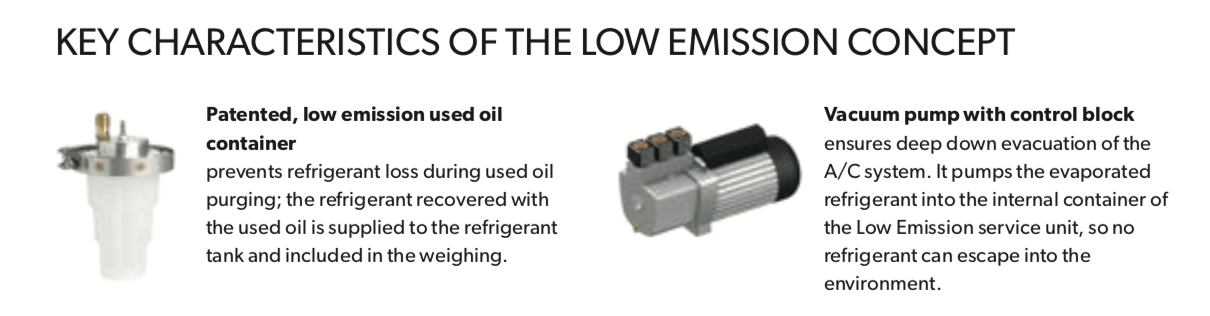

• Hermitically closed used oil container for the Low Emission concept
• Three USB ports
• Certified for four refrigerants
• Filter performance for 150 kg refrigerant

As a standard start up package we supply the ASC 7.3 LE with 3m hoses, a thermal printer and hybrid upgrade kit you just need to specify the refrigerant you wish to use either R134a or R1234yf.

Note : This service machine can be used in conjunction with the Waeco CO2 / R744 upgrade kit

R744 Upgrade Kit for ASC Service Units : Ref. No. 8885100178

Please call 01732 868080 for pricing

ASC 7.4
FULLY AUTOMATIC, HIGH-VOLUME A/C SERVICE UNIT  : Ref. No. 9103303118

Specifications:

• Charging cylinder storage capacity: 28 kg
• Vacuum pump capacity: 192 l/h
• Wi-Fi integration
• Patented feeding system for fresh oil and UV additive
• Four Oil UV scales accuracy +/-1g
• Used oil drain accuracy +/- 1g
• Integrated charging amount database
• Swivel-mount 10” LCD display
• Heated charging cylinder for high-speed charging
• Special, 8-bearing weighing platform
• Special air conditioner flush function
• Special hybrid flushing programme
• 500 ml used oil container for longer change intervals
• Three USB ports
• Certified for four refrigerants
• Filter performance for 150 kg refrigerant
• Integrated high-performance liquid pump for filling large quantities of refrigerant and/or for filling for special applications of service connections at great heights

As a standard start up package we supply the ASC 7.4 with 3m hoses, a thermal printer and hybrid upgrade kit, you just need to specify the refrigerant you wish to use either R134a or R1234yf.

Note : This service machine can be used in conjunction with the Waeco CO2 / R744 upgrade kit

R744 Upgrade Kit for ASC Service Units : Ref. No. 8885100178

Please call 01732 868080 for pricing

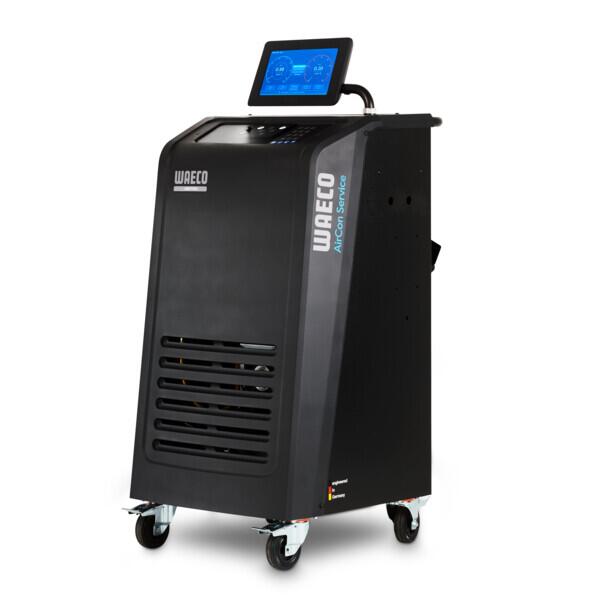

ASC 7.4 LE
FULLY AUTOMATIC LOW EMISSION A/C SERVICE UNIT, HIGH VOLUME  : Ref. No. 9103303119

Specifications:

• Recycling rate 99,99%
• Charging cylinder storage capacity: 28 kg
• Vacuum pump capacity:192 l/hour
• Wi-Fi integration
• Patented feeding system for fresh oil and UV additive
• Fully automatic refrigerant recycling, oil and additive management
• Four Oil UV scales accuracy +/-1g
• Used oil drain accuracy +/- 1g
• Automatic charging of leak detection additive
• Integrated charging amount database
• Swivel-mount 10” LCD display
• Heated charging cylinder for high-speed charging
• Special, 8-bearing weighing platform
• Hermitically closed used oil container for the Low Emission concept
• Three USB ports
• Certified for four refrigerants
• Filter performance for 150 kg refrigerant

• Integrated high-performance liquid pump for filling large quantities of refrigerant and/or for filling for special applications of service connections at great heights

As a standard start up package we supply the ASC 7.4 LE with 3m hoses, a thermal printer and hybrid upgrade kit, you just need to specify the refrigerant you wish to use either R134a or R1234yf.

Note : This service machine can be used in conjunction with the Waeco CO2 / R744 upgrade kit

R744 Upgrade Kit for ASC Service Units : Ref. No. 8885100178

Please call 01732 868080 for pricing

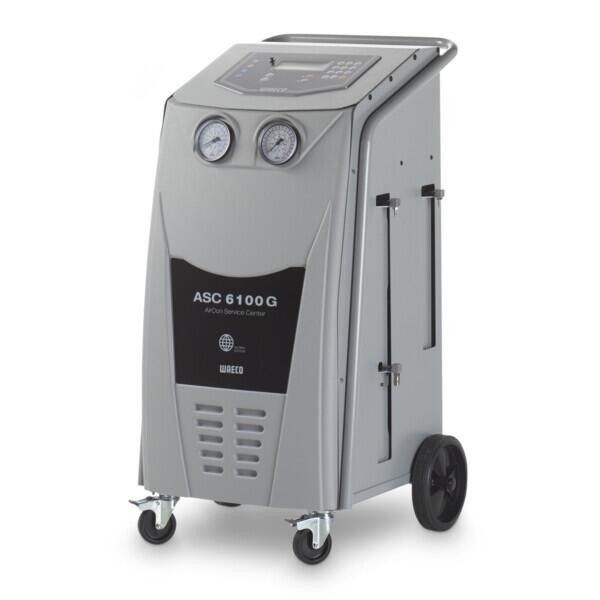

ASC 6100 G
Entry-level automatic A/C service unit : Ref. No. 9103303104

Waeco offer an entry level service machine the ASC6100G for those doing low volume A/C servicing. The budget price comes with Waeco quality features and build quality.

Specifications:

• Charging cylinder storage capacity: 9 kg
• Automatic refrigerant recycling

• Oil and UV additive management controlled by load cell
• Purity of recovered refrigerant according to SAE J 2099
• Refrigerant recycling rate: at least 95%
• Forced ventilation with two fans at the rear
• Soft graphic display – can also display special characters
• USB interface
• Load cell, no transport lock necessary
• Optional: dust cover
• Humidity free storage and feeding system for fresh oil and UV additive
• Optional: heat belt for the charging cylinder
• Optional: hybrid flushing

The standard starter package we provide include the ASC 6100 G machine, 3m hose kits for R134a or R1234yf refrigerants and a fast charge heater belt which helps to when conditions are cold.

Note : This service machine can be used in conjunction with the Waeco CO2 / R744 upgrade kit

R744 Upgrade Kit for ASC Service Units : Ref. No. 8885100178

Please call 01732 868080 for pricing

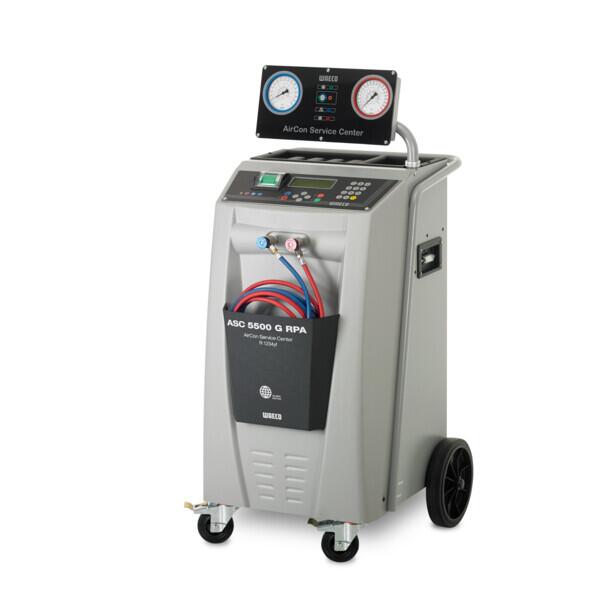

ASC 5500 G RPA 2020
LOW EMISSION SERVICE UNIT FOR R1234yf : Ref. No. 9103301896

The ASC 5500 G RPA comes with an integrated refrigerant analyser. This will confirm if the vehicle you are servicing has contaminated refrigerant or is of the correct purity.

• Charging cylinder storage capacity: 16 kg

• Vacuum pump capacity: 5 cars/h
• Humidity-free storage and feeding system for fresh oil and UV additive
• Integrated fully automatic refrigerant analysis function
• Fully automatic refrigerant recycling, oil and additive management
• Automatic vacuum check
• Automatic leak check prior to service start
• Automatic charging of leak detection additive
• Integrated charging amount database
• Complies with SAE J 2099, 2788 and 2843
• Close to 100% refrigerant recovery
• Operator guidance via large display
• Heated charging cylinder for high-speed charging
• Special, 8-bearing weighing platform

• Special air conditioner flush function

• Also suitable for hybrid vehicles
• Including adapter for non-returnable bottles 1/4” HD
• 3 separate weighing cells for UV additive and oil management

The starter package includes a 3m hose kit for either R134a or R1234yf and a thermal printer which allows you to print out a paper copy of the work undertaken.

Note : This service machine can be used in conjunction with the Waeco CO2 / R744 upgrade kit

R744 Upgrade Kit for ASC Service Units : Ref. No. 8885100178

Please call 01732 868080 for pricing

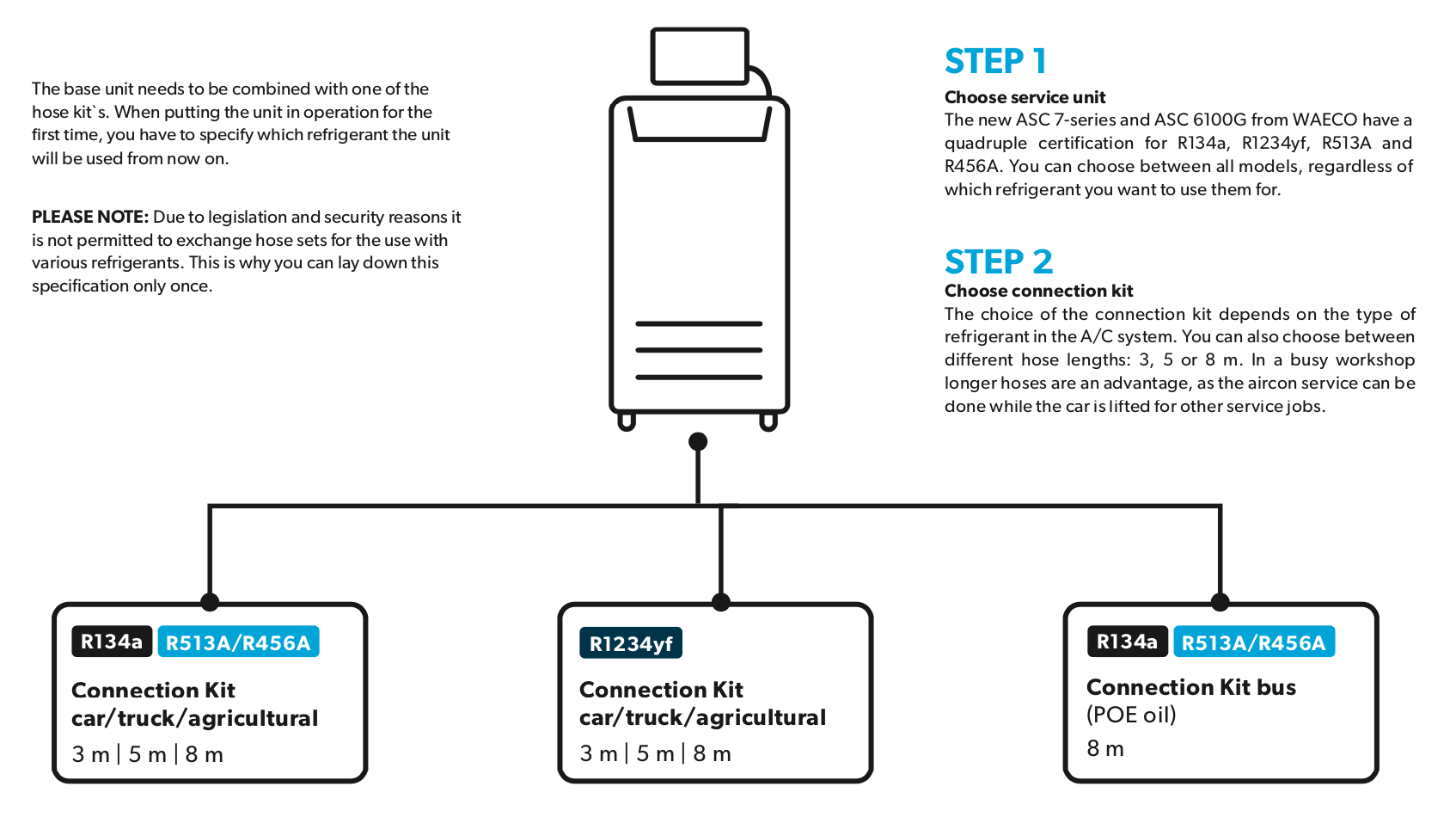

Kit selection

A 2-step process is used to select what you need. Step 1 pick your refrigerant, Step 2 confirm the length of hose required 3m, 5m or 8m.
